120 Photos
Link-Belt RTC8030 30 ton 4x4x4 Rough Terrain Crane
Located
Wilder, KY
Usage
8,613 hrs
Serial number
E8J7-8979
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#13956641
In yard
No
Manufacturer
Model
Asset type
Serial number or VIN
E8J7-8979
Features
Air Conditioner, Anti Two-Block, 8613 hrs Crane Operation, Tier 1, US EPA Label, CARB Compliant, Cummins 6BT 6 Cylinder 152 hp 5.9 L Diesel Engine, 29 ft Minimum 91.25 ft Maximum Boom Length, 27 ft to 44 ft Bifold Swingaway Offset Jib, 671 lb 30 ton Capacity Johnson 3 Sheave Hook Block, Overhaul Ball
Notes
COMES WITH IRONCLAD ASSURANCE. SUBJECT TO KENTUCKY SALES TAX.
General Appearance

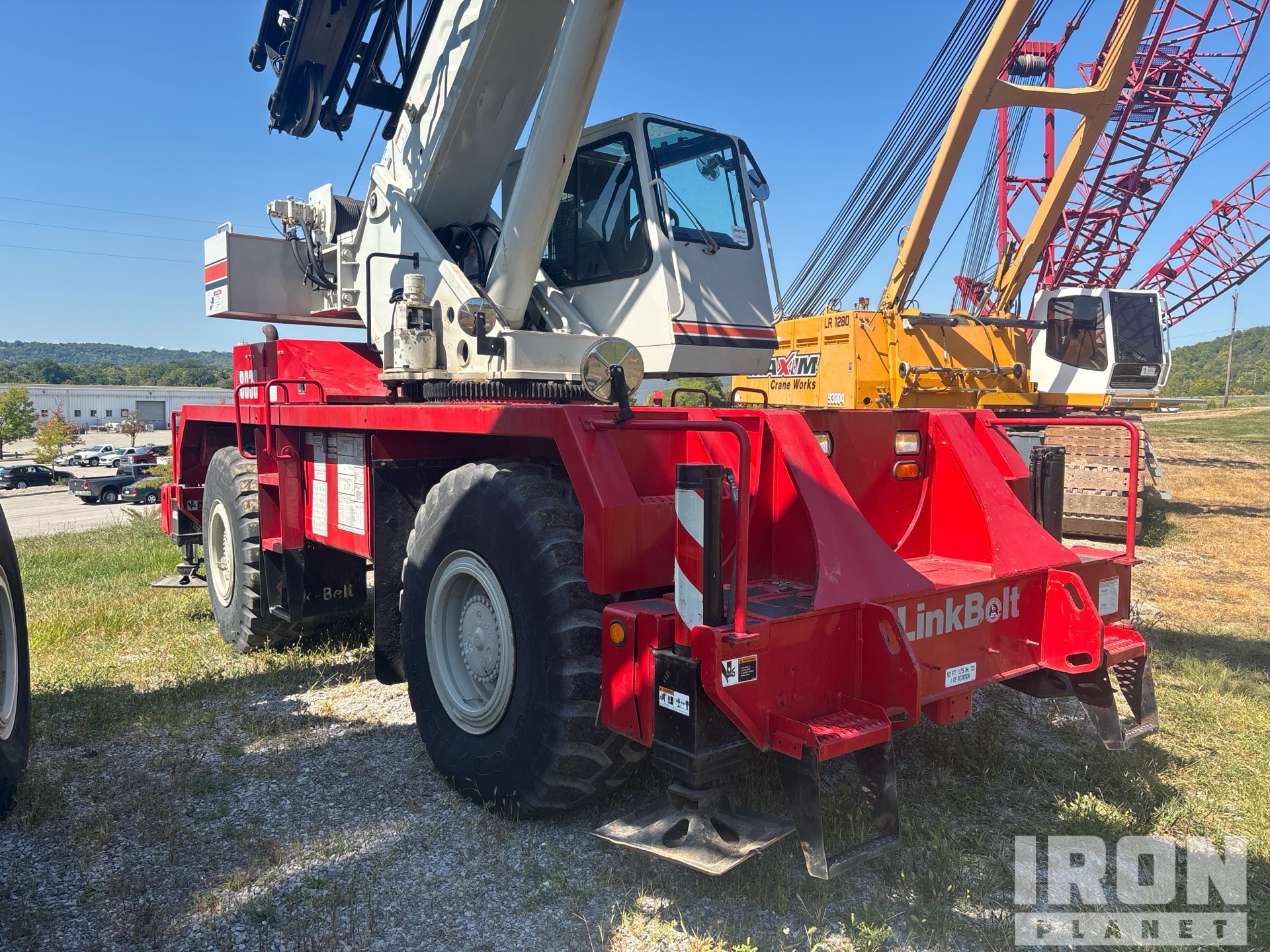

Picture, Left Front Corner

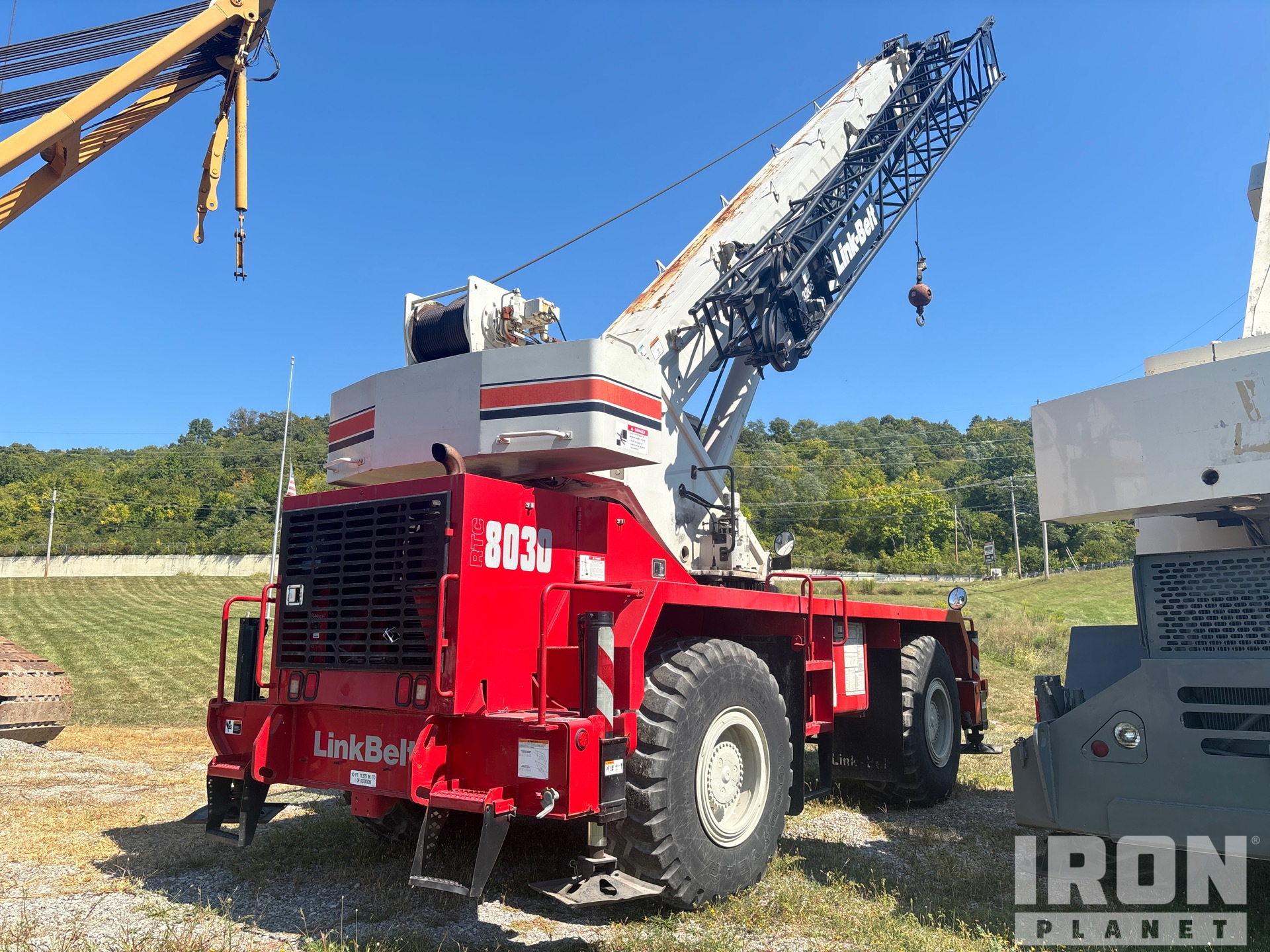

Picture, Left Rear Corner
Picture, Right Rear Corner

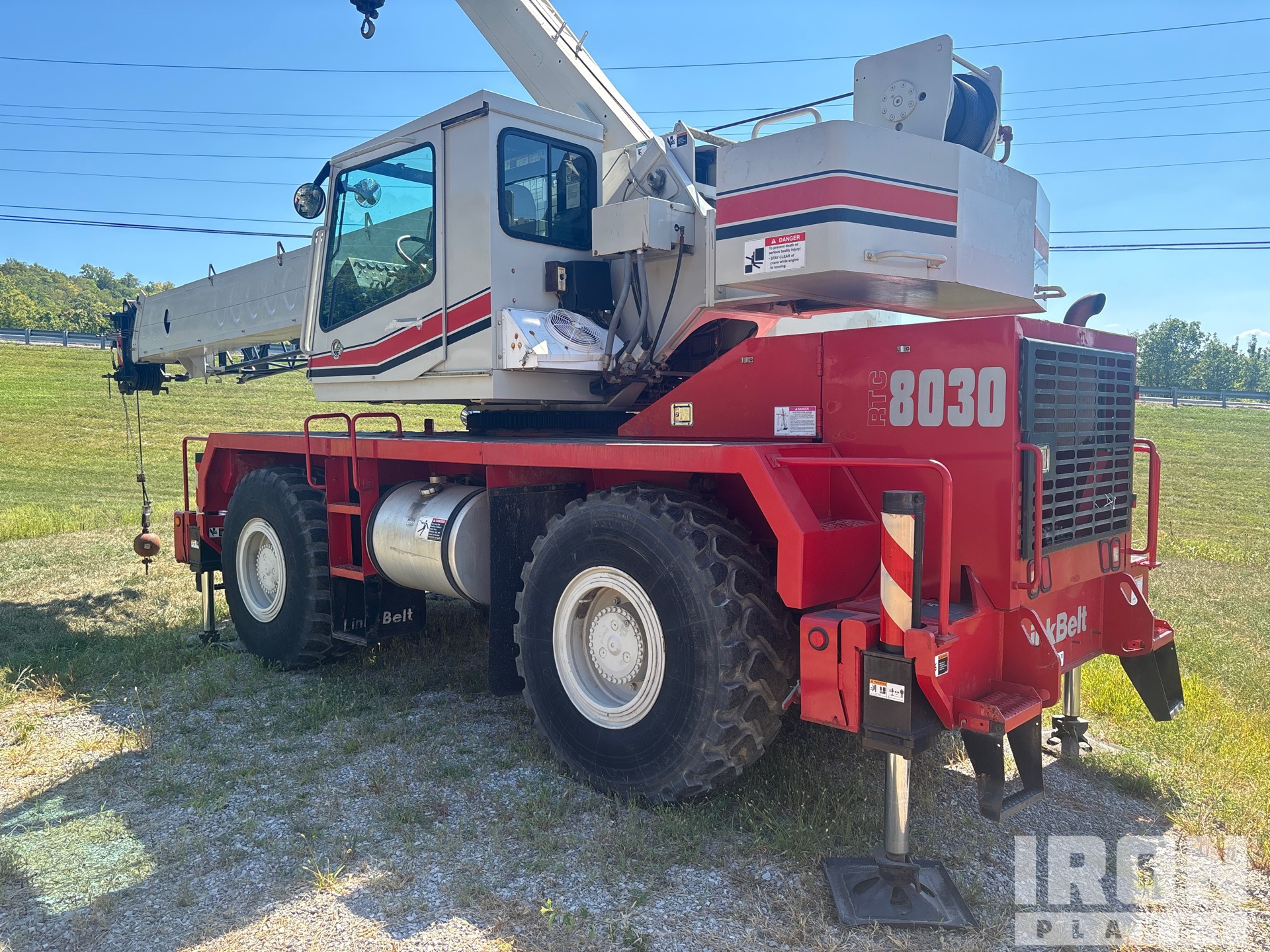

Picture, Right Front Corner
Serial Number / VIN
E8J7-8979
Hour Meter / Odometer
8613 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 4/22/25
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
8613 hrs Crane Operation
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Powers On, Not operationally checked with a load, Rated Capacity Limiter
Anti Two Block
Not operationally checked
Hydraulic Controls
Drivetrain Controls
Oil Pressure
The gauge registers in the operating range. 30 PSI
Warning Lights
Operational
Gauges
Engine Tachometer, Oil and Water Temperature gauges are inoperable
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Front Axle
Front Axle Oscillating Pin
Rear Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Wet with residue, did not drip during inspection
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Brake Type
Hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 20.5R25 Front tires, LF Goodyear, LR Michelin, RR Goodyear, RF Goodyear
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Minor wear
Overhaul Ball
Counterweights
