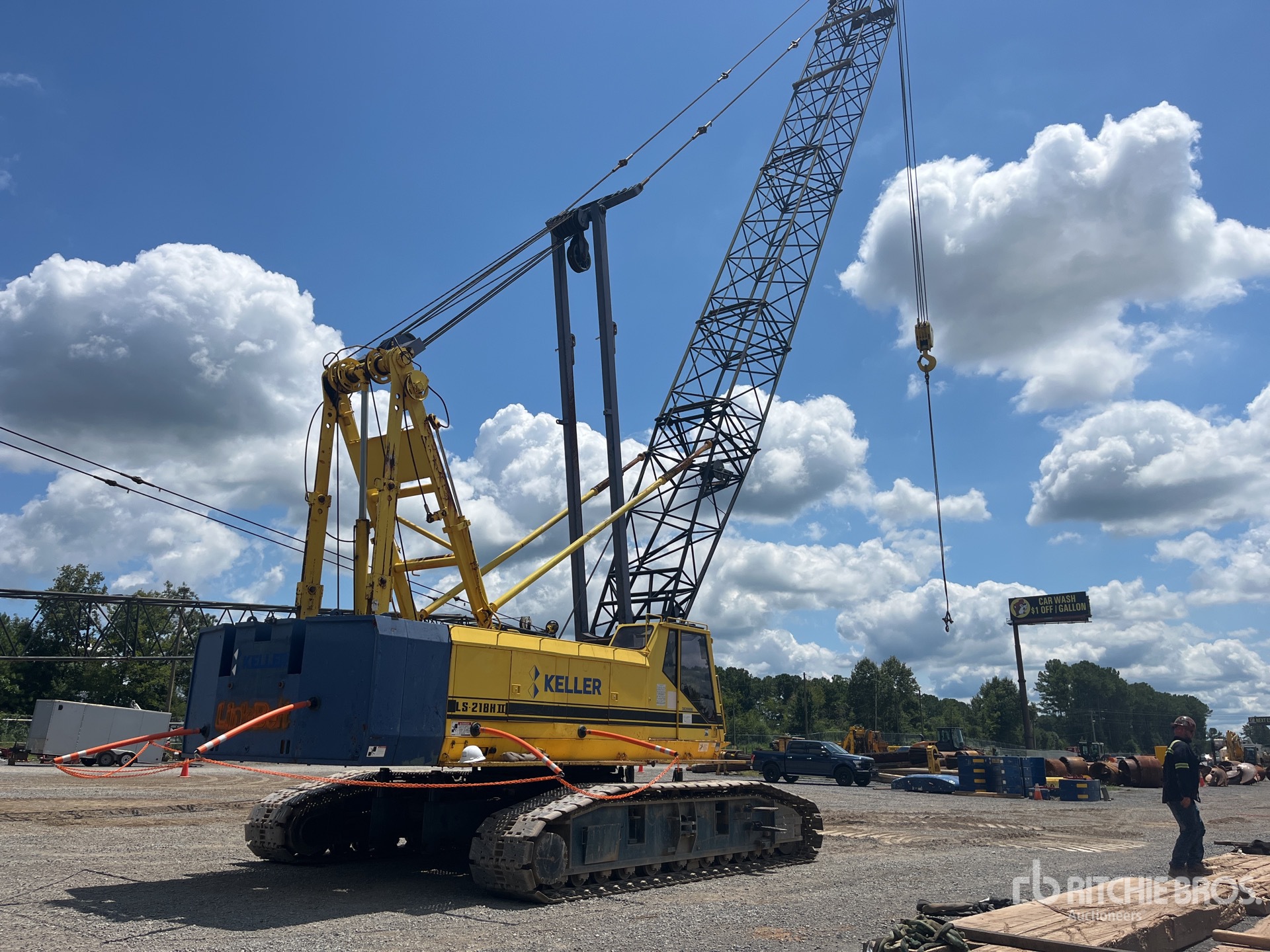

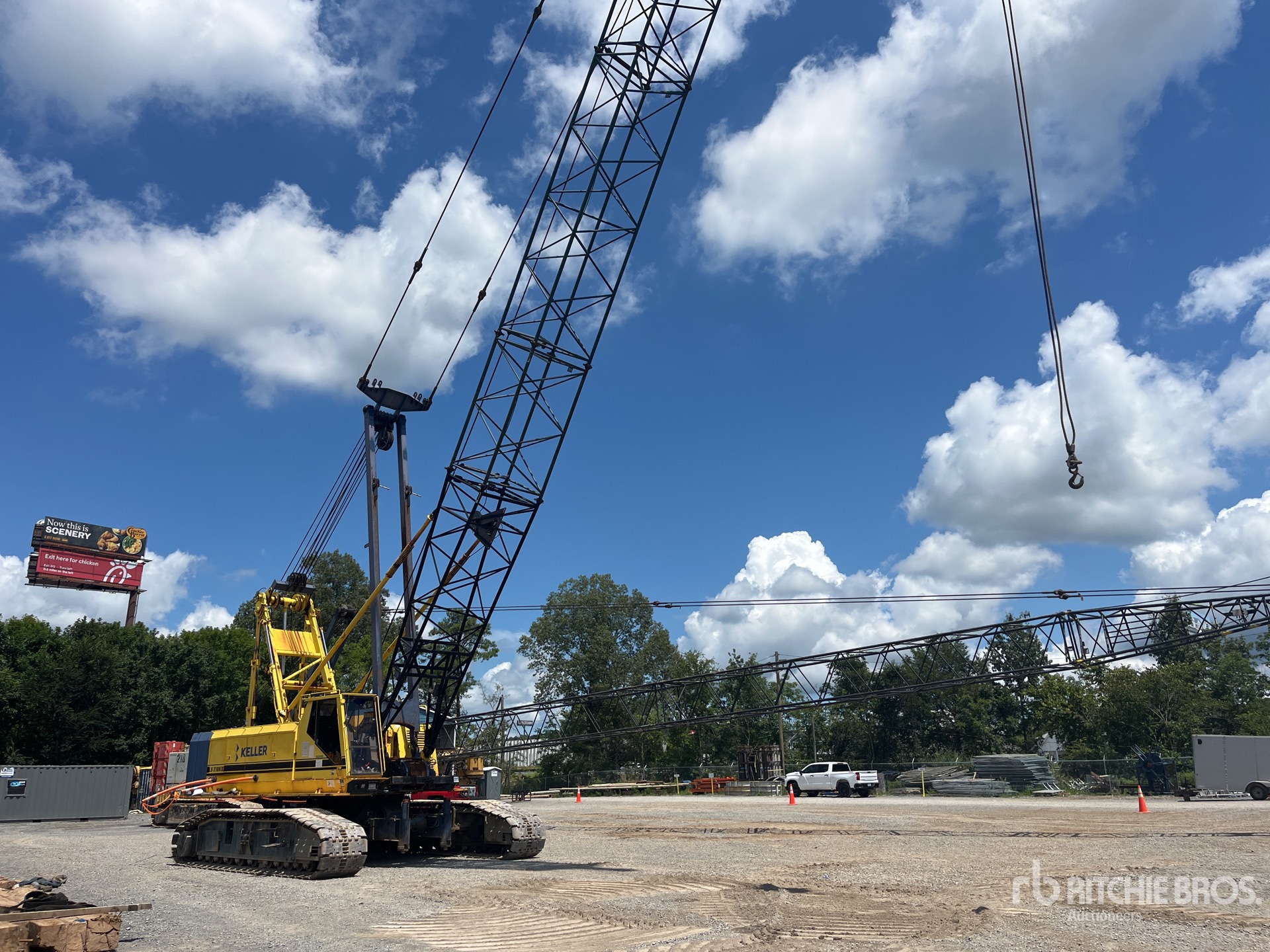

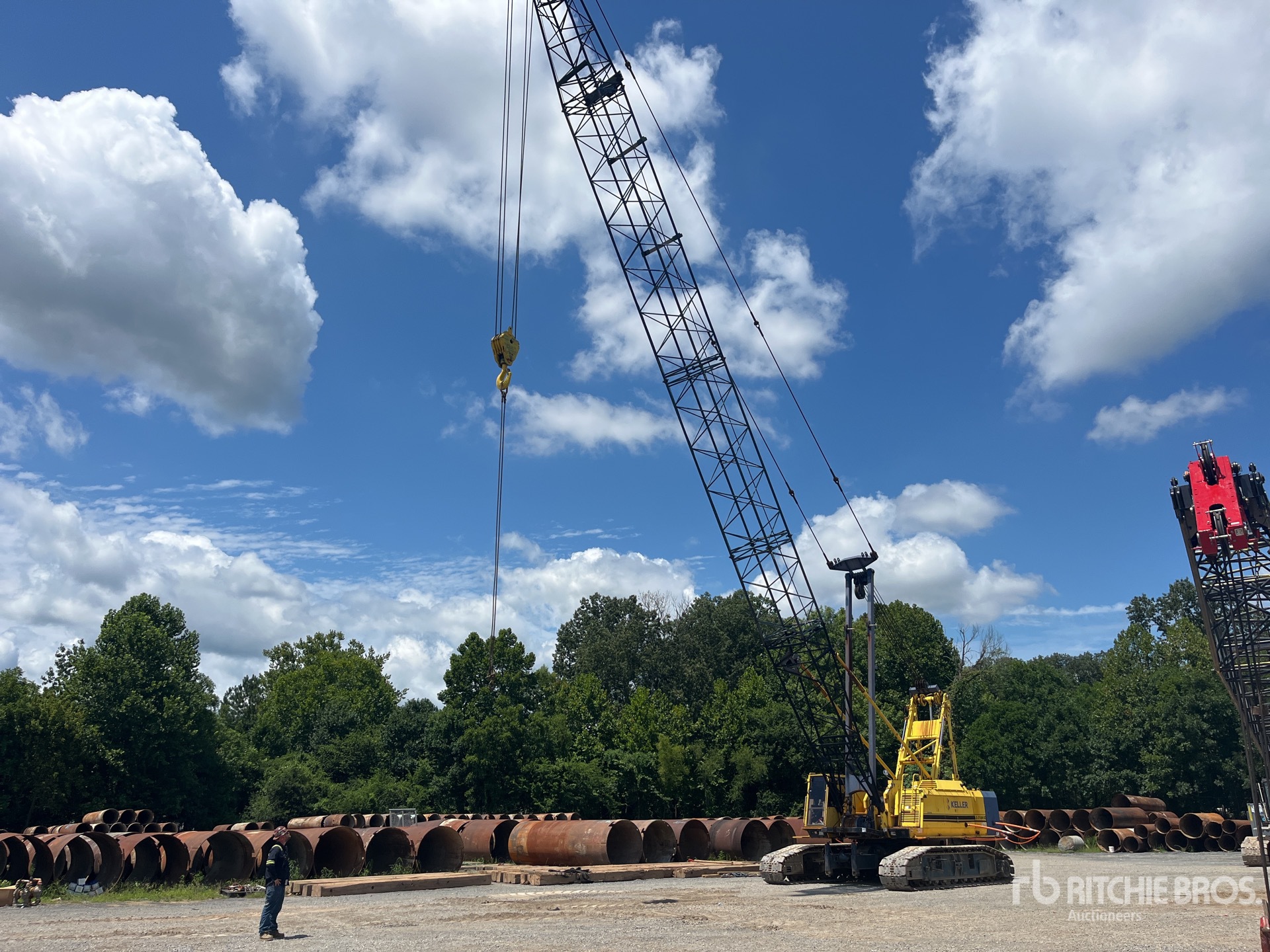

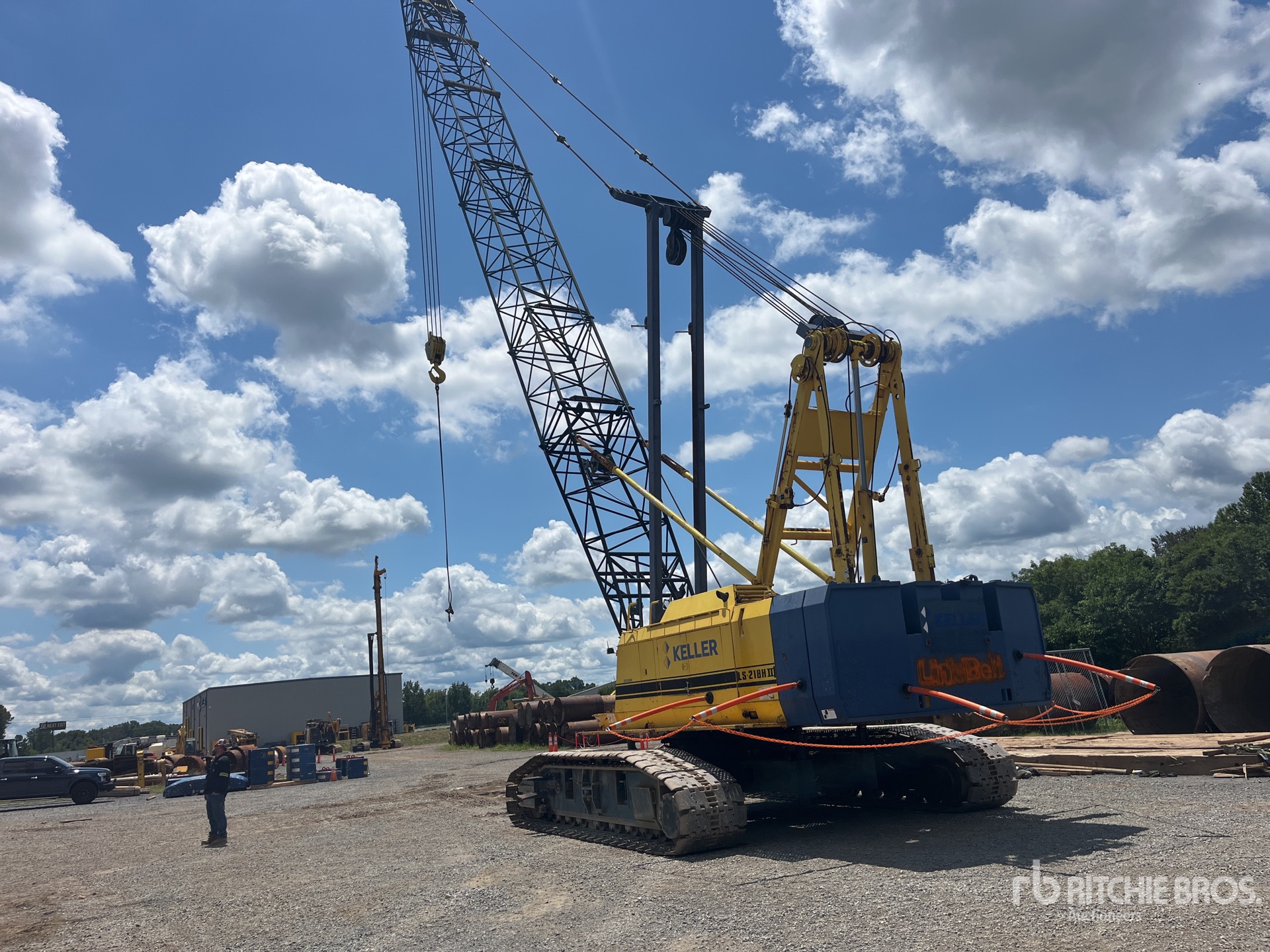

2001 Link-Belt LS218HII 100 ton Lattice-Boom Crawler Crane
Located
Calhoun, GA
Usage
7,037 hrs
Serial number
J2J1-49814
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#13862075
In yard
No
Year
2001
Manufacturer
Model
Asset type
Serial number or VIN
J2J1-49814
Features
80 ft Boom, Auxiliary Hoist, 3rd Drum, Johnson 2366 lb 3 Sheave 100 ton Hook Block, 43100 lb Counterweight, Counterweight Removal System, 36 in Smooth Track Shoes, Expandable Width Tracks
Notes
COMES WITH IRONCLAD ASSURANCE. SUBJECT TO GEORGIA SALES TAX.
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
J2J1-49814, No serial number or manufacturer’s identifying number found. This unit may be difficult to export.
Hour Meter / Odometer
7037.0 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There was no safety certification label located on the machine.
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Inoperable, LSI, HS550
Controls Hydraulic or Air
Hydraulic

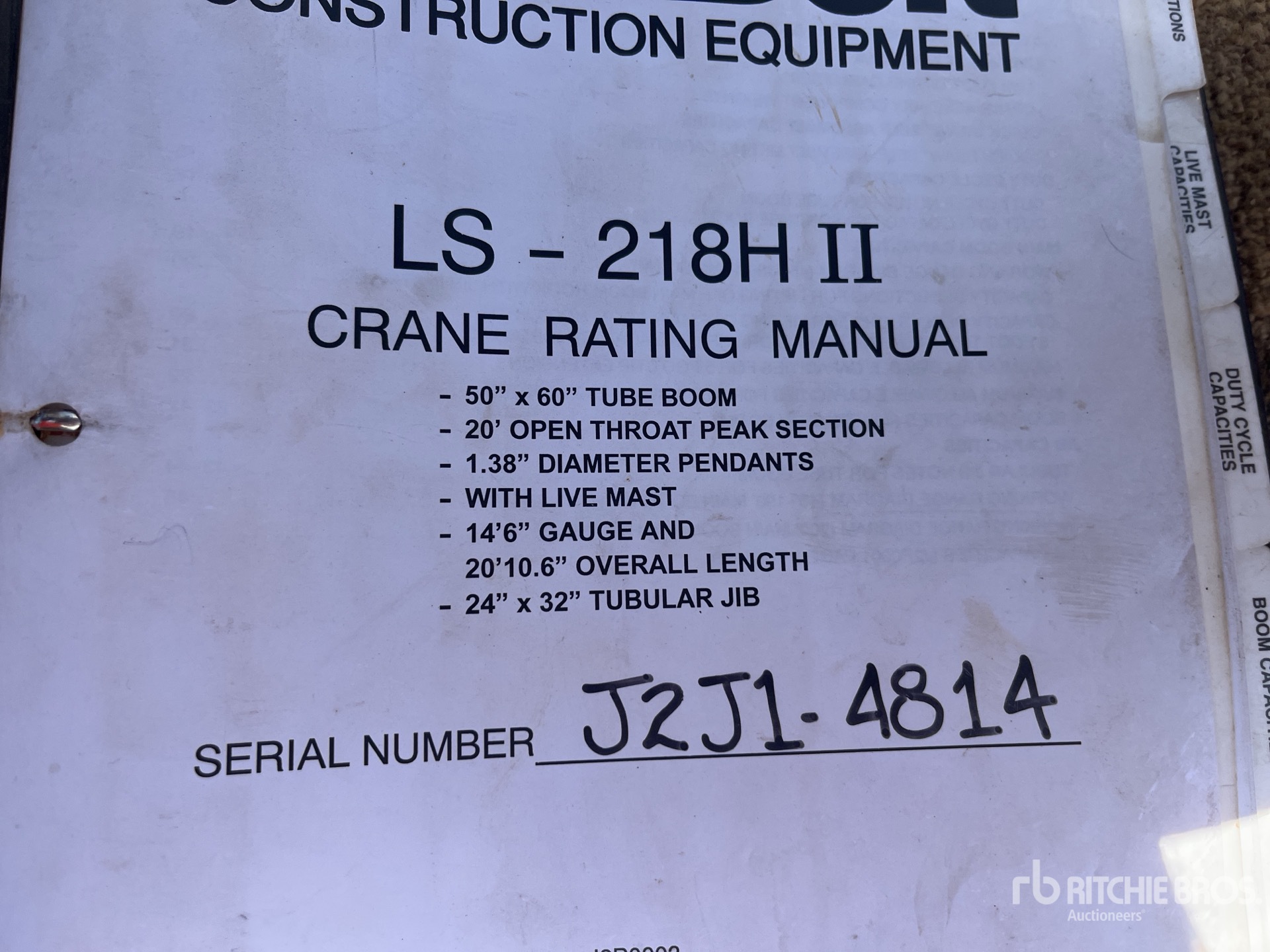

Load Charts
Chart book in cab
Oil Pressure
No oil pressure indicator
Warning Lights
Operational
Gauges
Operational, fuel, oil temperature gauges are inoperable
Hoist Brakes
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
A/C Compressor
Operational
Blow-by (subjective visual observation)
Significant
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Front of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Boom Stops
Main Boom Chords
Boom Length
80 ft overall length, 10 Sections, 50 ft Length, 20 ft base section, POC provided information
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Third Drum
Counterweights
A weight 26600 B weight 16600
