119 Photos
2006 Ford F-750 XLT 4x2 Service Truck
Located
Helenwood, TN
Usage
322,446 mi (518,927 km)
Serial number
3FRWF75R36V268892
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#13988473
In yard
No
Year
2006
Manufacturer
Model
Asset type
Serial number or VIN
3FRWF75R36V268892
Features
Cat C7 Diesel 230 hp Engine, Exhaust Brake, Allison Automatic Transmission, 10000 lb Front Axle, 21000 lb Rears, 25999 lb GVWR, Aluminum Outer Wheels, 11R22.5 Front Tires, 295/75R22.5 Rear Tires, Spring Suspension, 176 in Wheelbase, PTO, 2005 IMT DOM 2S2 13 ft Body, Hydraulic Stabilizers, IMT 6025 10500 lb 3 Section Hydraulic Crane, Wired Remote Control, Hydraulic Air Compressor, Air Hose Reel, Miller Bobcat 250 11000 W 250 A Gasoline Welder
General Appearance

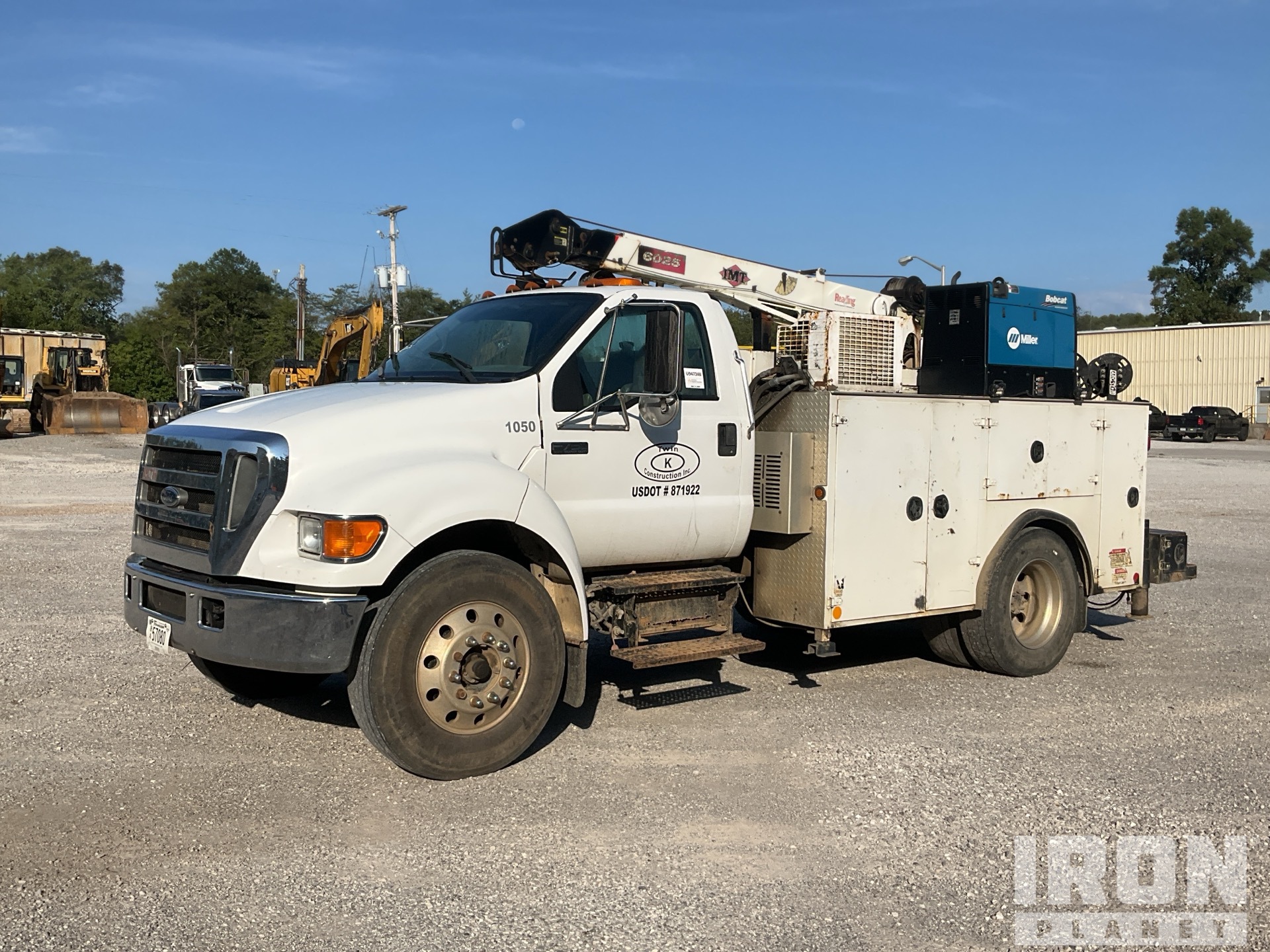

Picture, Left Front Corner

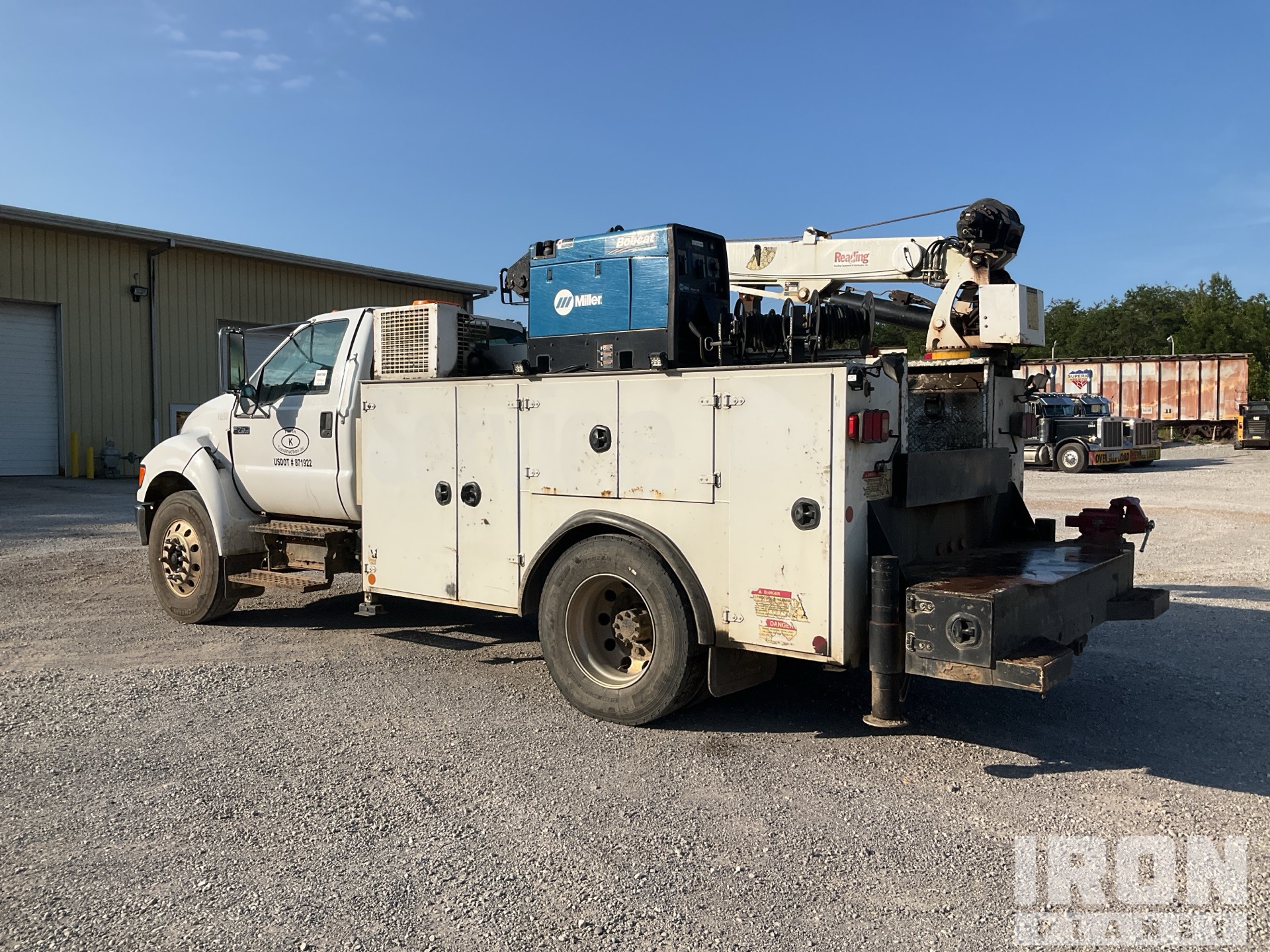

Picture, Left Rear Corner

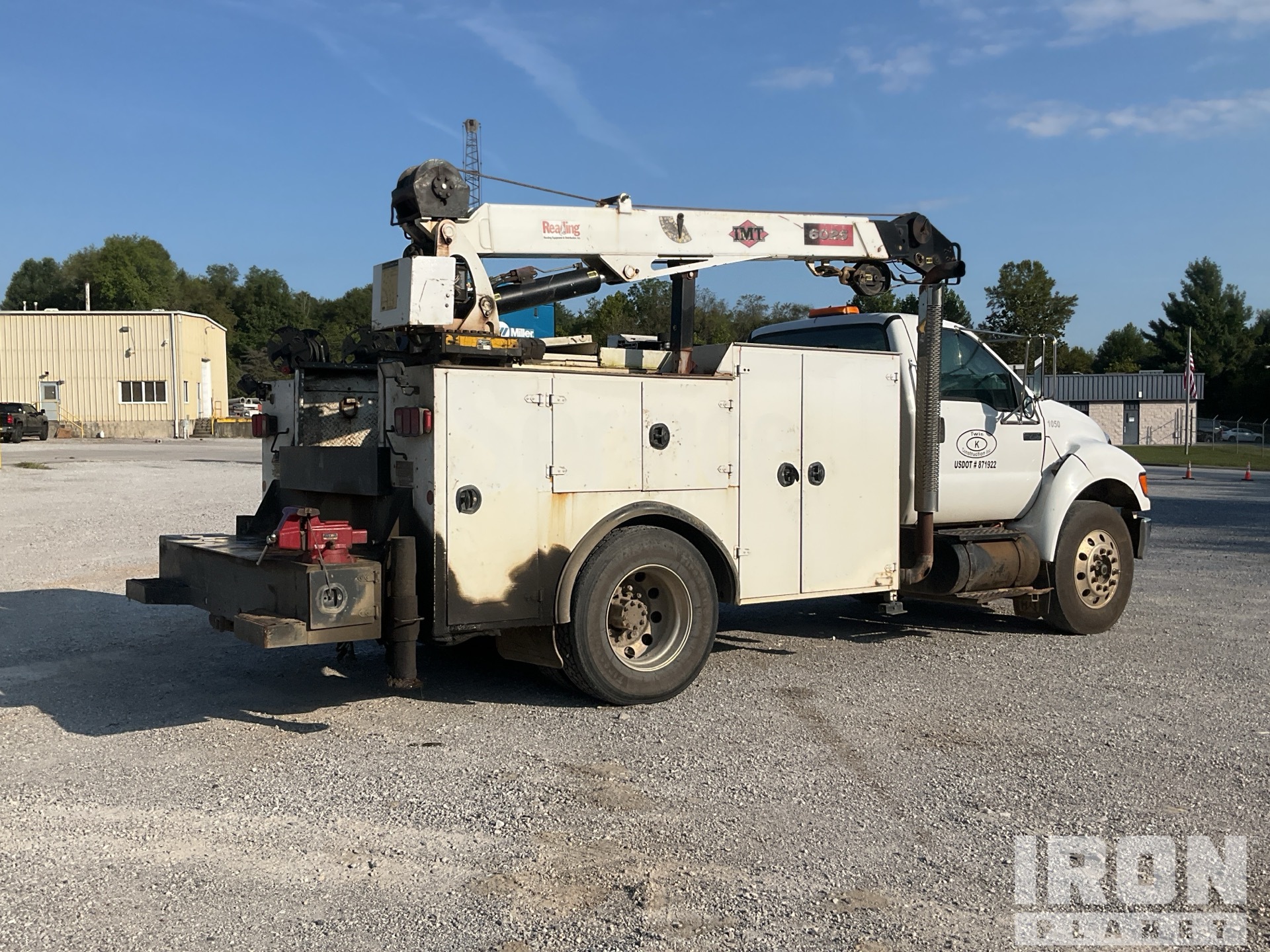

Picture, Right Rear Corner

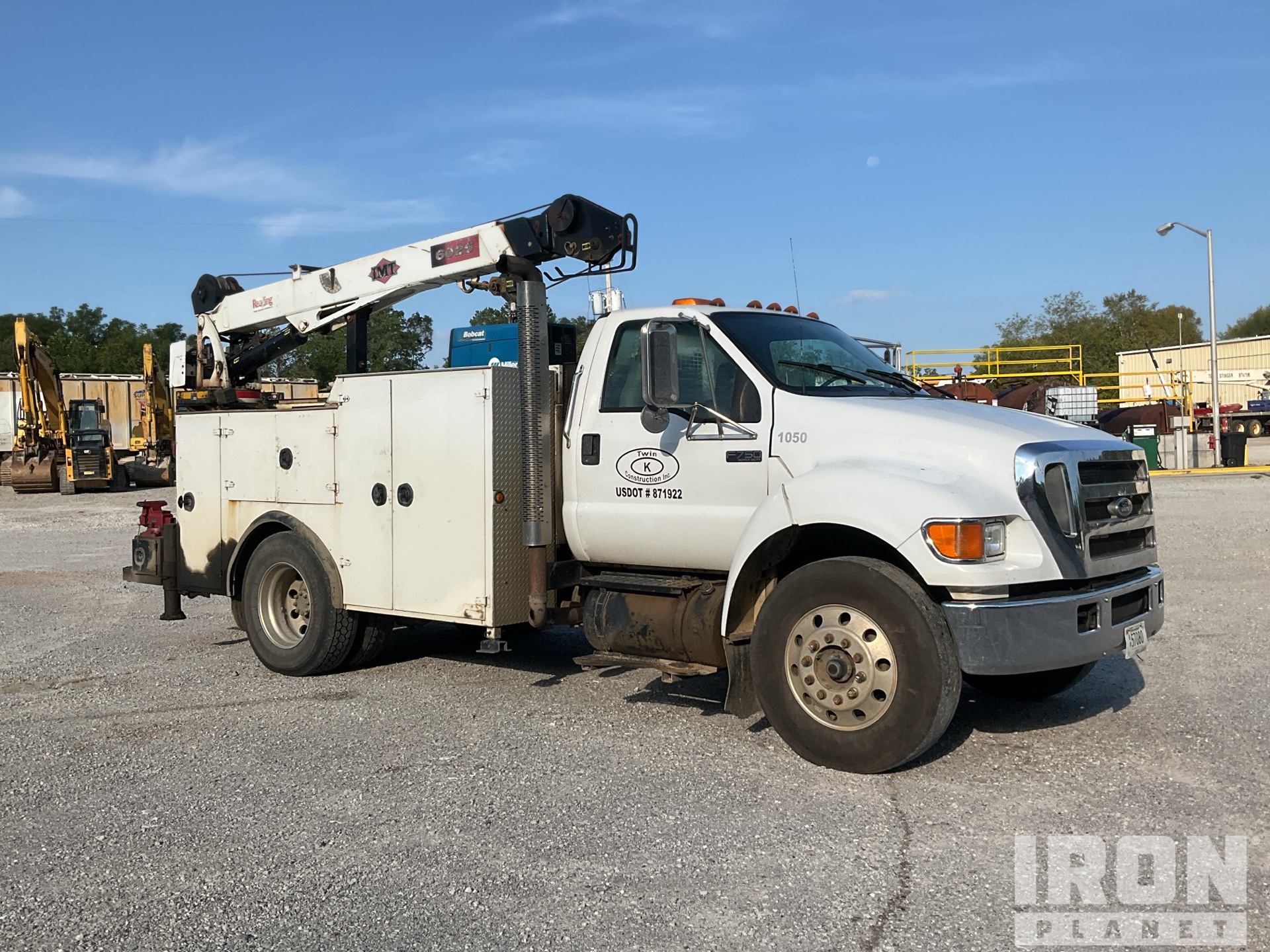

Picture, Right Front Corner

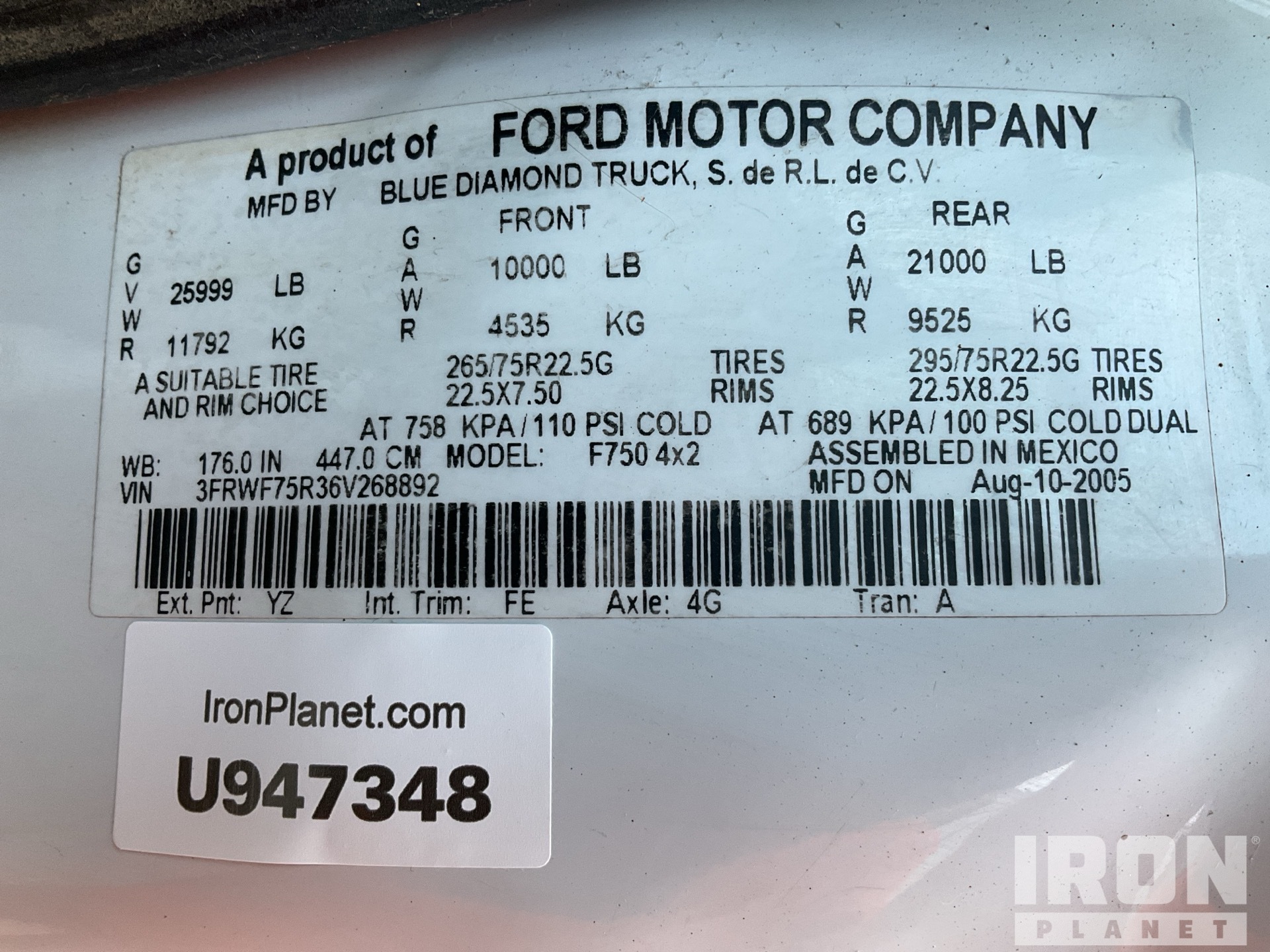

Serial Number / VIN
3FRWF75R36V268892
Second Serial Number/VIN Photo
Hour Meter / Odometer
322446 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires**
Steer Axle
- 4/32" Aluminum
- Drum
- Drum
- 1/32" Aluminum
Rear Axle
- 12/32" Aluminum
- 9/32" Steel
- Drum
- Drum
- 14/32" Steel
- 15/32" Aluminum
Engine
Emissions Status
US EPA Label not legible
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Significant
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine, Rear of engine
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Mirrors
Window Controls
Both Power
Seats/armrests
Seat Belts
Operational
Steering Control
Steering wheel loose
Horn
Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, ABS light stays on
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
PTO Control
Cable engaged
ECM Miles
Unable to get ECM reading
Air Conditioner
Operational, Some fan speeds are inoperable
Heater
Operational, Some fan speeds inoperable
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational, Dripping leak
Power Take Off
Operational
PTO Pump
Frame Condition
Rear Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Left Steer Tire
Left Rear Drive Tires
Right Rear Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Specialty
Bed Body
Air Compressor
Not operationally checked
Welding Machine
The engine runs, Hour meter reading 159
Crane
The crane extends and is operational, Rotation jerky and noisy. Hoses leaking oil
Stabilizer Jacks
Number of jacks 2, Hydraulic, Significant leak
Tool/Storage Boxes
Unable to unlatch some doors
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Sep 18, 2025 |
| Silicon | 3.77 PPM |
| Tin | 0.28 PPM |
| Silver | 0 PPM |
| Aluminum | 1.45 PPM |
| Chromium | 0.31 PPM |
| Lead | 0.08 PPM |
| Copper | 0.48 PPM |
| Nickel | 0.07 PPM |
| Iron | 6.97 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
