82 Photos

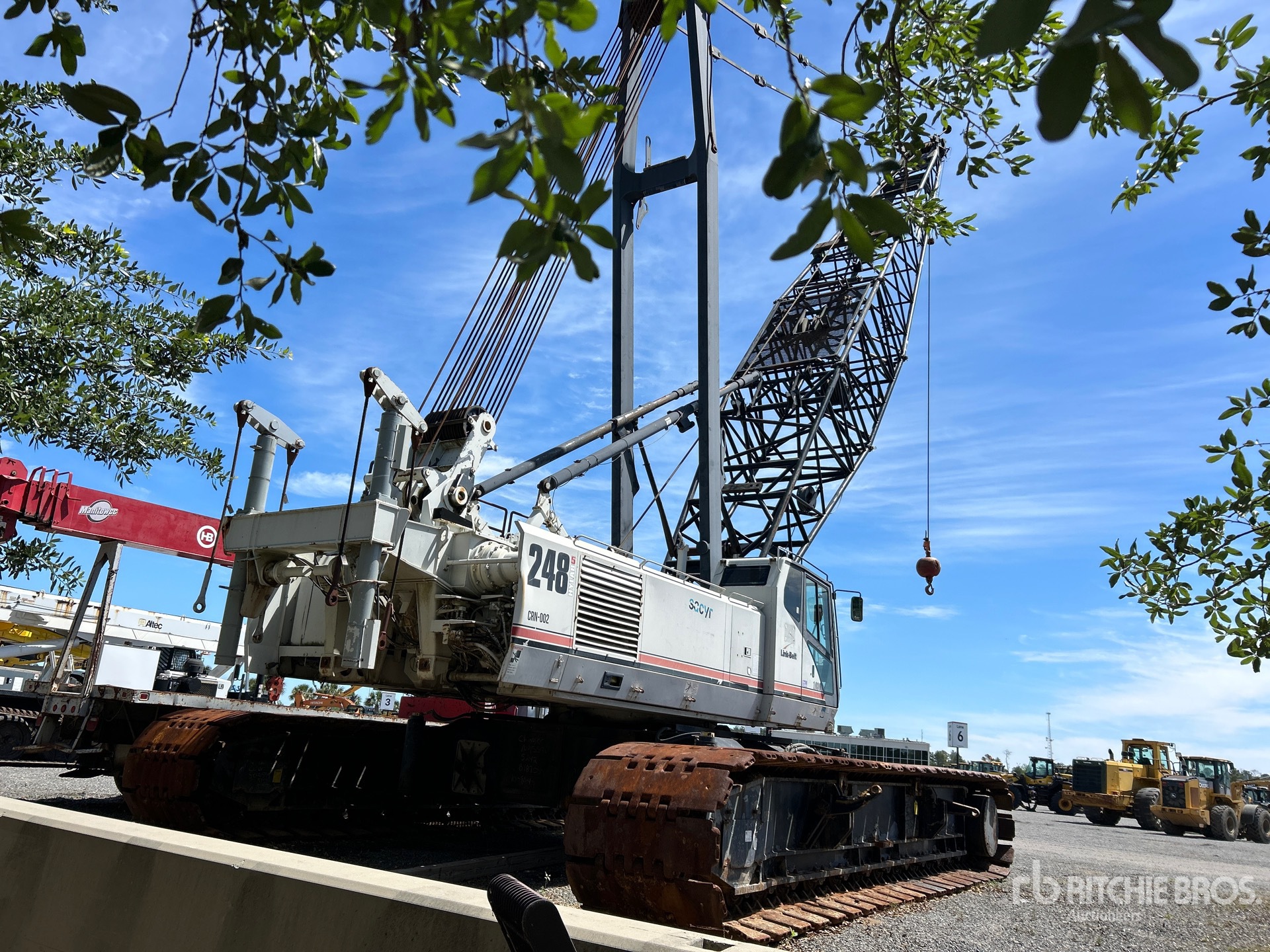

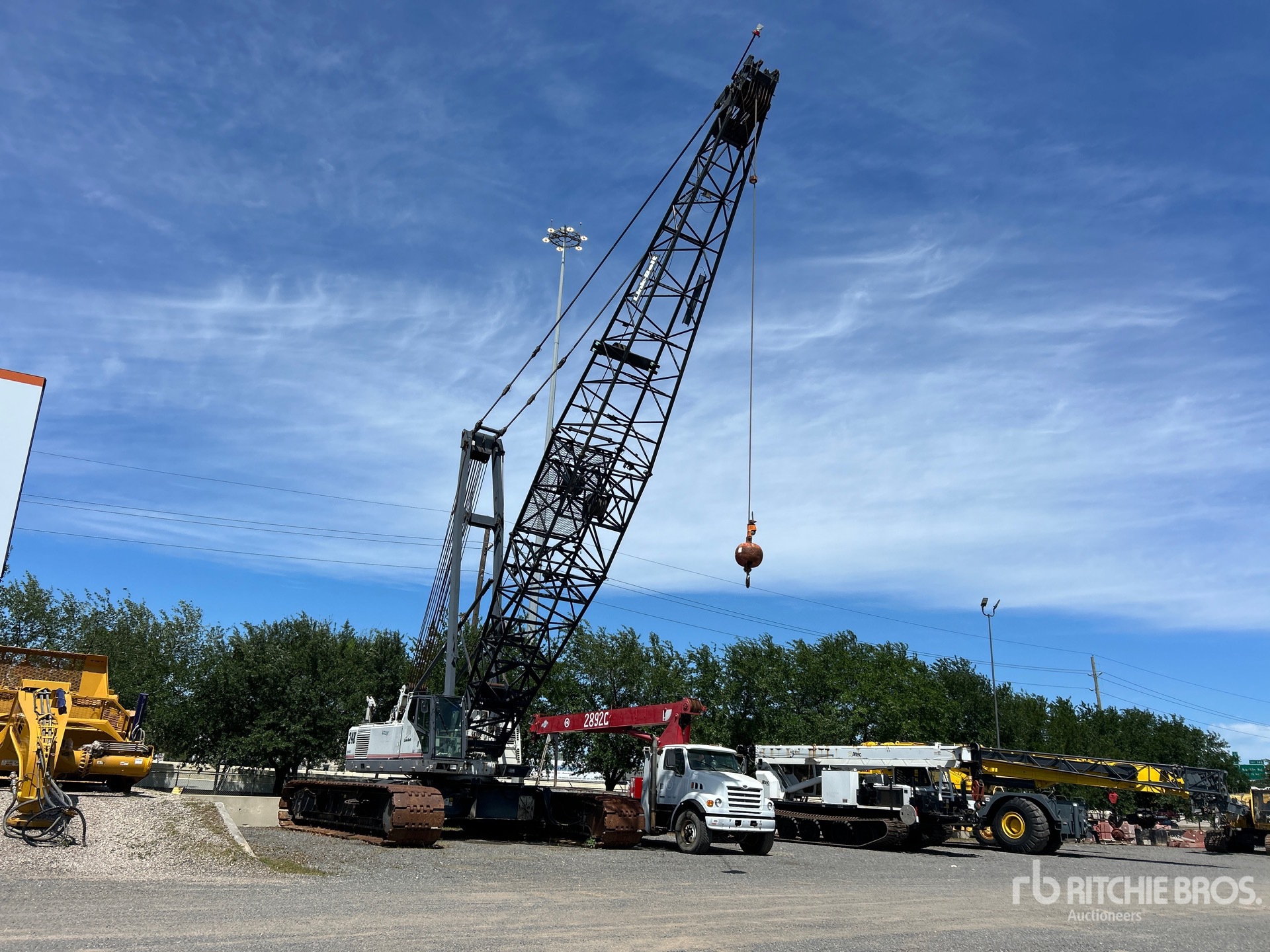

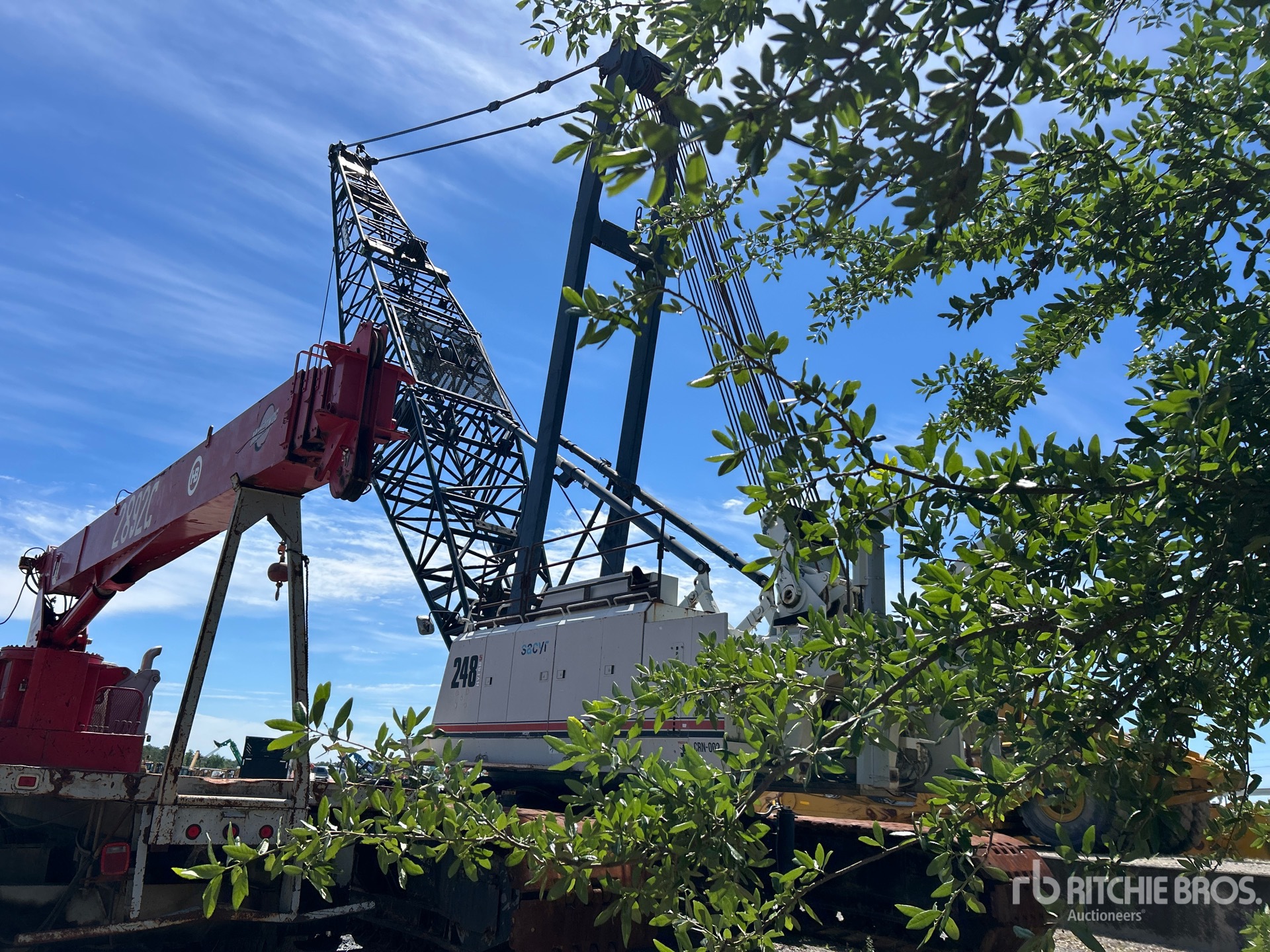

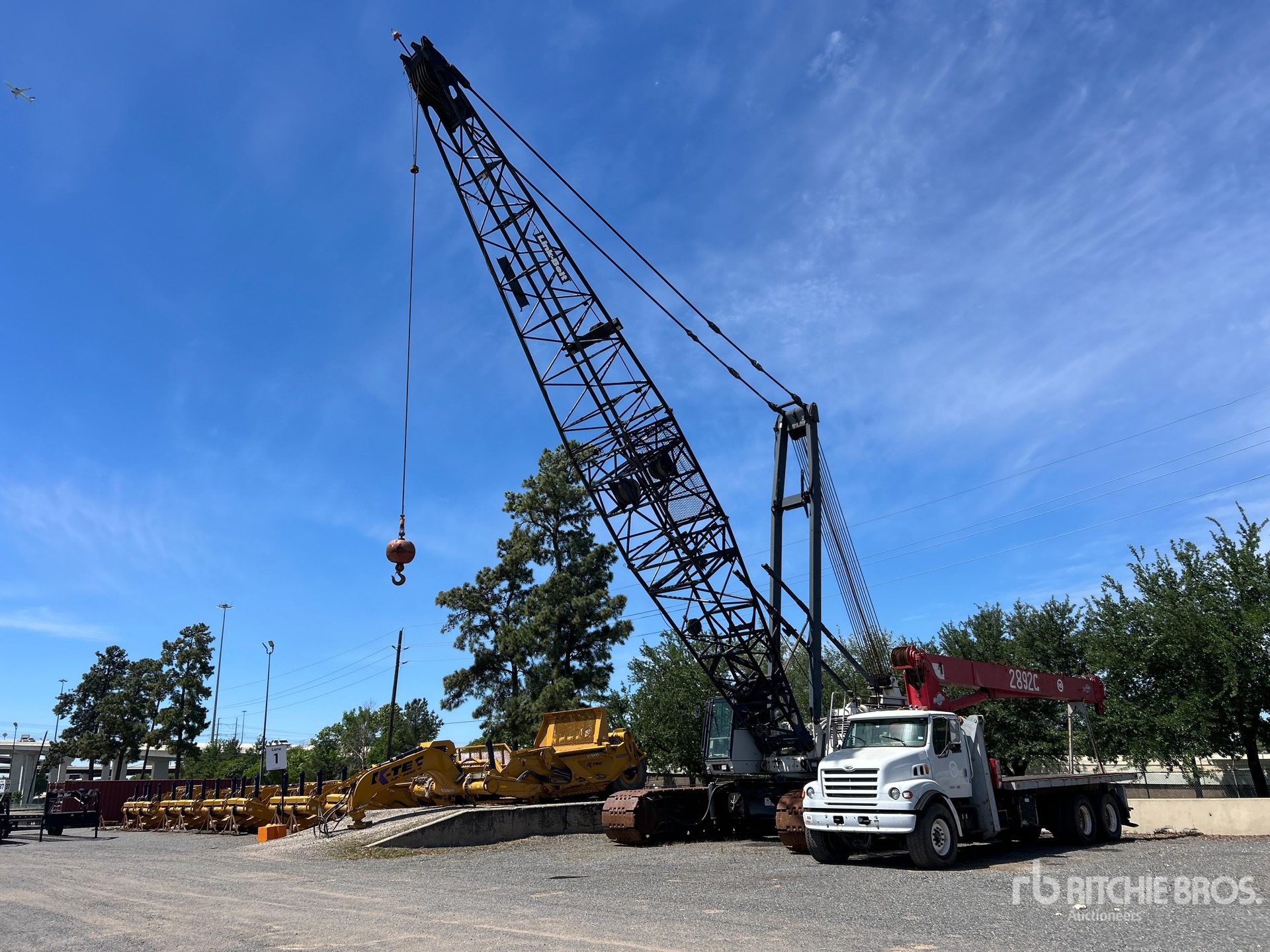

2012 Link-Belt LS-248 H 200 ton Lattice-Boom Crawler Crane
Located
Humble, TX
Humble, TX
Usage
8,691 hrs
8,691 hrs
Serial number
N5K2-2579
N5K2-2579
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#14903714
In yard
Yes
Features
200 ft Boom, Self Erecting, Auxiliary Hoist, Rooster Sheave, Johnson 2866 lb 4 Sheave 75 ton Hook Block, Overhaul Ball, 141850 lb Counterweight, Counterweight Removal System, Air Conditioner, Link Belt Load Moment Indicator, 2010 US EPA Label, 48 in Smooth Track Shoes, Trimble GS320 Wind Speed Indicator
General Appearance
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
N5K2-2579
CE Mark
No CE mark found
Hour Meter / Odometer
8691 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: 200470
Safety Certification Label
There is a safety certification label with a date of 5/26/21
Safety Certification Report
Safety Certification Report Not Available
Crane Superstructure
Control Station
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2010 US EPA Label
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting. No dipstick visible
Drivetrain
Limited Function Check
The drivetrain would not engage.
Hydraulics
Limited Function Check
The hydraulic system was not operational.
Undercarriage
Deficiencies
Deficiencies
Deficient Components/Systems Include but are not limited to: Control Station Section, Engine Section, Drivetrain Section, Hydraulics Section, After jump start, no hydraulic functions were possible, multiple warnings
